TCP segment header

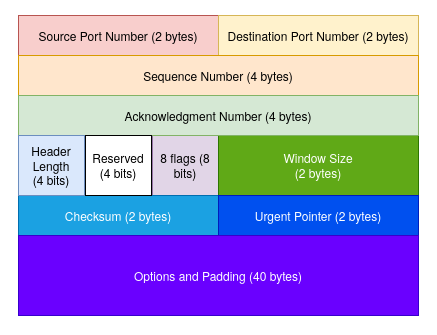

The TCP header is a lot more complex than UDP. It is flexibly sized between 20 and 40 bytes.

Source and destination ports

These are self-explanatory

Sequence Number

Every byte of the TCP segment is labelled with a sequence number, and the one in the header is the number of the first byte in this packet. It's used for ordering the packets on arrival.

Acknowledgement Number

4-byte field containing the sequence number of the next expected segment. Used to check for out-of-order segments.

Header Length

4-bit (half a byte) about the length of the TCP header. It's actually the number of 4-byte words in the header, since there are only 4 bits, so 16 possibilites.

Reserved Field

Padding so that the header is a multiple of 4 bytes long.

Header flags

These make up the 8 bits of flags in the middle of the header.

ACK

Used to acknowledge a previous segment that was recieved.

RST

Reset flag. Immediately terminates a connection based on refused connections, confusion, or crashes.

SYN

Synchronization flag initiates a connection with a new host.

FIN

Terminates a connection normally.

CWR & ECN

Congestion window reduced and Explicit Congestion Notification are used to handle congestion.

PSH

Short for push. Used to stop the receiving end from bundling messages together before handing them to the application layer. The PSH flag will force the receiving TCP handler to flush the buffer after the message arrives.

URG

Marks a message as urgent, so that it is processed first on the host. An example if it being useful is for cancelling a file transfer.

Window Size

This is the remaining size of the aforementioned buffer. It is used to let the sender know how much space is currently left in the buffer, and is used for flow control.

Checksum

Standard checksum

Urgent Pointer

Used to point at the byte which contains the urgent data, since one segment can send both urgent and non-urgent data. Irrelevant if the urgent flag is not set.

Options and padding

An extra 40 bytes to implement other things that are not supported by the stock header. A timestamp is an example of something in this section.
